HOME > PRODUCTS CENTER > ISO9624 PN16 LAP JOINT FLANGE
ISO 9624 PN16 LAP JOINT FLANGE
Print The Page
PN16 Loose Flange Zinc / Galvanizing Coated
Jinan Hyupshin Flanges Co., Ltd, Flanges Manufacturer, ISO9624 PN16 LAP JOINT FLANGE COLD GALV
Jinan Hyupshin Flanges Co., Ltd, Flanges Manufacturer, ISO9624 PN16 LOOSE FLANGE COLD ZINC, ELECTRO GALVANIZED FLANGE
Flange Dimensions & Approximate Masses / Flange Weight

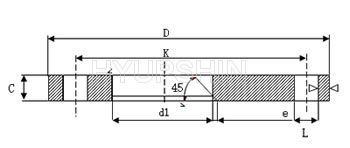

ISO9624 PN16 LAP JOINT FLANGE DIMENSIONS
DN D d1 K C L BOLT NB e kg
40/50 150 62 110 16 18 M16 4 3 1.71
50/63 165 78 125 16 18 M16 4 3 1.96
65/75 185 92 145 16 18 M16 4 3 2.41
80/90 200 108 160 18 18 M16 8 3 2.86
100/110 220 128 180 18 18 M16 8 4 3.27
100/125 220 135 180 18 18 M16 8 4 3.06
125/125 250 135 210 18 18 M16 8 4 4.63
125/140 250 158 210 18 18 M16 8 4 3.88
150/160 285 178 240 18 22 M20 8 4 5.07
150/180 285 188 240 18 22 M20 8 4 4.66
200/200 340 235 295 26 22 M20 12 4 8.75
200/225 340 238 295 26 22 M20 12 4 8.52
250/250 405 288 355 29 26 M24 12 4 13.05
250/280 405 294 355 29 26 M24 12 4 12.42
300/315 460 338 410 32 26 M24 12 5 17.61
350/355 520 376 470 35 26 M24 16 5 25.51
400/400 580 430 525 38 30 M27 16 5 32.12
500/500 715 533 650 46 33 M30 20 7 58.24
600/630 840 645 770 55 36 M33 20 8 89.40
700/710 910 740 840 63 36 M33 24 8 96.87
NOTE:
1. Any special request for flanges thickness or inner dimension, please indicate when make an inquiry.
2. This flange usually coated cold zinc / galvanizing and used for pipes connecting.
Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80") for Plate Flange, Forged Flange.
2. Flange Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105, SS400, Q235.
3. Flange Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flange Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Flange Monthly Output: 3000 tons per Month.
6. Flange Delivery Terms: CIF, CFR, FOB, EXW, transport by sea, by air, by express DHL, FedEx, TNT, EMS etc.
7. Flange Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Flange Minimum Order Quantity (MOQ): 1Ton or 100Pcs per size.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.
