ASME/ANSI Flanges
ANSI B16.47 SERIES A CLASS 150 FLANGE
ANSI B16.47 SERIES A CLASS 150 FLANGE technical product page with drawings, dimensions and purchasing information.
02 · images & drawings
Product Images & Drawings
Product photos, drawings and specification images for visual review.
03 · dimensions
Dimensions & Technical Tables
Dimension tables and specification drawings for purchasing review.

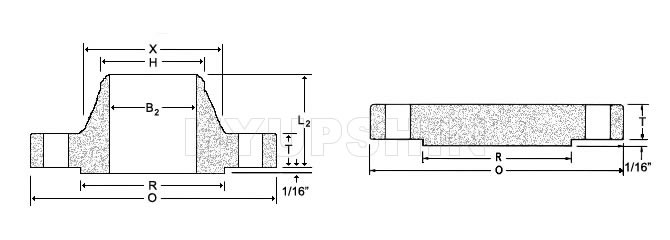

ANSI B16.47 Series A Class 150 dimensions
| ANSI B16.47 SERIES A CLASS 150 FLANGES DIMENSIONS TABLE | ||||||||||||||
| Nom Size | OD | Thickness | OD of RF | Dia at Base | Bore | LTH | Dia Bevel | Drilling | Weight | |||||
| Weld Neck | Blind | Bolt Circle | Bolt Length | HoleDia | No. of Holes | Weld Neck | Blind | |||||||
| O | C | C | R | X | B | Y | A | (1) | (2) | |||||
| 26 | 34.25 | 2.63 | 2.63 | 29.5 | 26.62 | 4.69 | 26 | 31.75 | 8.75 | 1.38 | 24 | 300 | 702 | |
| 28 | 36.5 | 2.75 | 2.75 | 31.5 | 28.62 | 4.88 | 28 | 34 | 9 | 1.38 | 28 | 345 | 833 | |
| 30 | 38.75 | 2.88 | 2.88 | 33.75 | 30.75 | 5.32 | 30 | 36 | 9.25 | 1.38 | 28 | 400 | 982 | |
| 32 | 41.75 | 3.13 | 3.13 | 36 | 32.75 | 5.63 | 32 | 38.5 | 10.5 | 1.62 | 28 | 505 | 1237 | |
| 34 | 43.75 | 3.19 | 3.19 | 38 | 34.75 | 5.82 | 34 | 40.5 | 10.5 | 1.62 | 32 | 540 | 1384 | |
| 36 | 46 | 3.5 | 3.5 | 40.25 | 36.75 | 6.13 | 36 | 42.75 | 11 | 1.62 | 32 | 640 | 1676 | |
| 38 | 48.75 | 3.38 | 3.38 | 42.25 | 39 | 6.13 | 38 | 45.25 | 11 | 1.62 | 32 | 720 | 1819 | |
| 40 | 50.75 | 3.5 | 3.5 | 44.25 | 41 | 6.38 | 40 | 47.25 | 11 | 1.62 | 36 | 775 | 2040 | |
| 42 | 53 | 3.75 | 3.75 | 47 | 43 | 6.69 | 42 | 49.5 | 11.5 | 1.62 | 36 | 890 | 2381 | |
| 44 | 55.25 | 3.94 | 3.94 | 49 | 45 | 6.94 | 44 | 51.75 | 12 | 1.62 | 40 | 990 | 2717 | |
| 46 | 57.25 | 4 | 4 | 51 | 47.12 | 7.25 | 46 | 53.75 | 12 | 1.62 | 40 | 1060 | 2961 | |
| 48 | 59.5 | 4.19 | 4.19 | 53.5 | 49.12 | 7.5 | 48 | 56 | 12.5 | 1.62 | 44 | 1185 | 3348 | |
| 50 | 61.75 | 4.32 | 4.32 | 55.5 | 51.25 | 7.94 | 50 | 58.25 | 13.25 | 1.88 | 44 | 1270 | 3716 | |
| 52 | 64 | 4.5 | 4.5 | 57.5 | 53.25 | 8.19 | 52 | 60.5 | 13.75 | 1.88 | 44 | 1410 | 4156 | |
| 54 | 66.25 | 4.69 | 4.69 | 59.5 | 55.25 | 8.44 | 54 | 62.75 | 14 | 1.88 | 44 | 1585 | 4639 | |
| 56 | 68.75 | 4.82 | 4.82 | 62 | 57.38 | 8.94 | 56 | 65 | 14.25 | 1.88 | 48 | 1760 | 5132 | |
| 58 | 71 | 5 | 5 | 64 | 59.38 | 9.19 | 58 | 67.25 | 14.75 | 1.88 | 48 | 1915 | 5675 | |
| 60 | 73 | 5.13 | 5.13 | 66 | 61.38 | 9.38 | 60 | 69.25 | 15 | 1.88 | 52 | 2045 | 6154 | |
04 · production & purchase
Production Capacity & Purchase Details
Supply range, materials, order details and export documents for quotation review.
Supply RangeAvailable supply range: DN15 - DN2000 (1/2" - 80"). Confirm flange type, pressure rating, facing, drilling and tolerance requirements before quotation.
Material GradesCommon material grades include carbon steel such as ASTM A105, A181, A350 LF1, A350LF2, A350LF3, A36, A234 WPB, Q235B, 20#, 20Mn etc. 3. Material, and stainless steel such as ASTM A182 F304, F304L, F316, F316L. Final material selection should follow the applicable standard and project specification.
Surface ProtectionSurface protection can include anti-rust oil, black paint, yellow paint, hot-dip galvanizing, electro galvanizing or customer-specified coating. Coating requirements should be confirmed together with packing and destination details.
Inspection & DocumentsInspection and document support can include EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service. 10. Heat number traceability and order records can be prepared for export review when required.
Packing & DeliveryExport packing can be arranged with plywood cases, pallets or customer-specified packing. Delivery terms may include FOB, CFR, CIF, EXW or other agreed trade terms based on destination and shipment requirements.
RFQ InformationTypical MOQ reference: MOQ can be reviewed by size, material grade and production schedule. Send standard, flange type, size, pressure/rating, material grade, facing, quantity, coating, certificate scope and destination port. Payment terms may include T/T, irrevocable L/C at sight or agreed payment terms for approved orders.
