HOME > PRODUCTS CENTER > BS 4504 WELDING NECK FLANGE

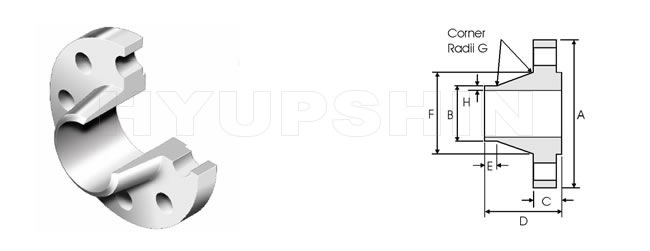

BS 4504 WELD NECK FLANGE CODE 111
Print The Page
PN6, PN10, PN16, PN25, PN40 WN FLANGE
Raised Face (RF), Flat Face (FF)
Shandong Hyupshin Flanges Co., Ltd, BS4504 Welding Neck RF Flanges Manufacturer
British Standard BS 4504 : Section 3.1 : 1989 - Circular Flanges for Pipes, Valves and Fittings (PN Designated), Specification for Steel Flanges. This covers flanges in nominal pressure ranges PN 2.5 to PN 40 and nominal sizes up to DN 4000 (see table below). BS 4504 substantially agrees with ISO 7005-1 : 1992 (E) Part 1 : Steel Flanges.
BS 4504 : 1969 is still commonly used. This older standard allows for manufacture from bar, whereas the latest standard specifies that forging or plate are to be used, which can be significantly more expensive. There are minor differences in dimensions between the two versions. The following tables are based on the later version.

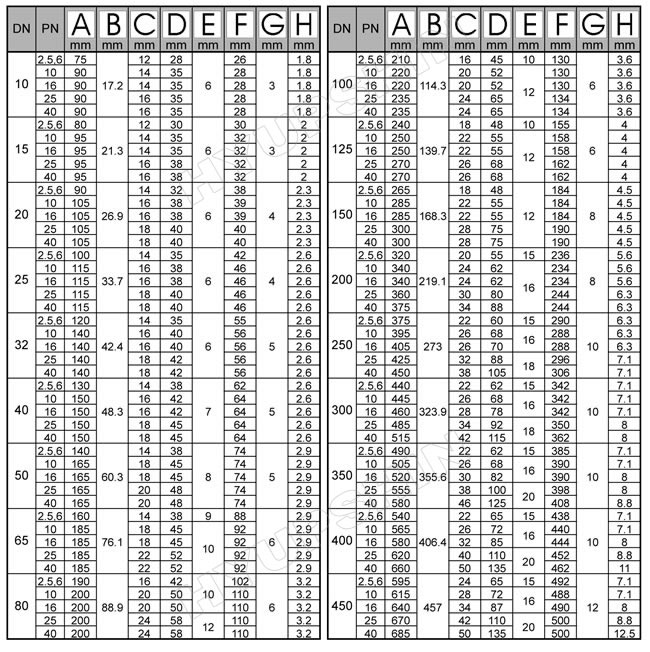

Flange Dimensions & Approximate Masses / Flange Weight
Shandong Hyupshin Flanges Co., Ltd, BS4504 Welding Neck RF Flanges Manufacturer
Certificates
ISO9001-2015 TUV Rheinland for flanges manufacturing and sales
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
CE PED 2014/68/EU, AD2000 W0 W9
ISO9001:2015
UKCA PER 2016

Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80") for Welding Neck Flange, Forged Flange.
2. Flange Material Carbon Steel: ASTM A105, S235JR, C22.8, RST37.2, ST37, P245GH, P250GH, ASTM A181, Q235
3. Flange Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flange Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Flange Monthly Output: 3000 tons per Month.
6. Flange Delivery Terms: CIF, CFR, FOB, EXW, transport by sea, by air, by express DHL, FedEx, TNT, EMS etc.
7. Flange Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Flange Minimum Order Quantity (MOQ): 1Ton or 100Pcs per size.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.
