Jinan Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, Competitive Prices, High Quality, Fast Delivery Dimensions & Approximate Masses of BS 10 Table D Flange
British Standard BS 10 : 1962 - Specification for Flanges and Bolting for Pipes, Valves, and Fittings. This covers plain, boss, integrally cast or forged, and welding neck type flanges, in ten tables. Although BS 10 is obsolescent, it remains in use for the dimensions of light duty, economy stainless steel flanges in applications where corrosion resistance and/or hygiene, rather than high pressures and temperatures, are the primary considerations. The following tables detail the applicable standard dimensions from Tables D, E, F and H of BS 10.
BRITISH BS 10 TABLE D FLANGE SPECIFICATION

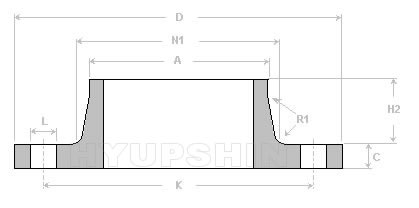

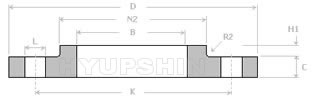

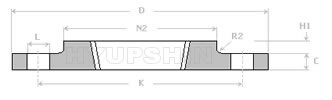

N.B. SIZE D K L A C N1 N2 B H1 H2 R1 R2 HOLES
IN mm
½" 15 95.3 66.8 14.5 21.3 4.8 27.0 33.3 22.4 9.5 22.2 6.4 1.6 4
¾" 20 101.6 73.2 14.5 26.7 4.8 33.3 38.1 27.7 11.1 22.2 6.4 1.6 4
1" 25 114.3 82.6 14.5 33.5 4.8 42.9 47.6 34.6 11.1 22.2 6.4 1.6 4
1 ¼" 32 120.7 87.4 14.5 42.2 6.4 49.2 55.6 43.2 11.1 25.4 6.4 1.6 4
1 ½" 40 133.4 98.6 14.5 48.3 6.4 58.7 61.9 49.5 12.7 28.6 6.4 1.6 4
2" 50 152.4 114.3 17.5 60.5 7.9 69.9 74.6 62.0 12.7 28.6 6.4 1.6 4
2 ½" 65 165.1 127.0 17.5 73.2 7.9 82.6 90.5 74.7 15.9 31.8 6.4 1.6 4
3" 80 184.2 146.1 17.5 88.9 9.7 101.6 106.4 90.7 15.9 34.9 6.4 1.6 4
3 ½" 88 203.2 165.1 17.5 101.6 9.7 114.3 119.1 103.4 17.5 34.9 6.4 1.6 4
4" 100 215.9 177.8 17.5 114.3 9.7 130.2 133.4 116.1 19.1 41.3 9.5 3.2 4
5" 125 254.0 209.6 17.5 141.2 12.7 152.4 160.3 143.8 19.1 44.5 9.5 3.2 8
6" 150 279.4 235.0 17.5 168.4 12.7 184.2 185.7 171.7 19.1 47.6 9.5 3.2 8
8" 200 336.6 292.1 17.5 219.2 12.7 241.3 241.3 221.5 22.2 50.8 9.5 3.2 8
10" 250 406.4 355.6 22.2 273.1 16.0 292.1 298.5 276.4 27.0 63.5 9.5 3.2 8
12" 300 457.2 406.4 22.2 323.9 19.1 342.9 349.3 325.9 28.6 69.9 9.5 4.8 12
14" 350 527.1 469.9 25.4 355.6 22.2 406.4 - 359.2 - 73.0 9.5 4.8 12
16" 400 577.9 520.7 25.4 406.4 22.2 - - 410.5 - - - - 12
18" 450 641.4 584.2 25.4 457.2 25.4 - - 461.8 - - - - 12
20" 500 704.9 641.4 25.4 508.0 28.6 - - 513.1 - - - - 16
24" 600 825.5 755.7 28.7 609.6 31.8 - - 616.0 - - - - 16
