HOME > PRODUCTS CENTER > EN 1092-1 TYPE 13 THREADED FLANGE
EN 1092-1 TYPE 13 THREADED FLANGE
Print The Page
EN1092-1/13 PN6 PN16 SCREWED FLANGE
RAISED FACE (RF) -B (B1 B2), FLAT FACE (FF) - A
Shandong Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, EN1092-1 Type 13 flanges
Shandong Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, EN1092-1 Type 13 flanges

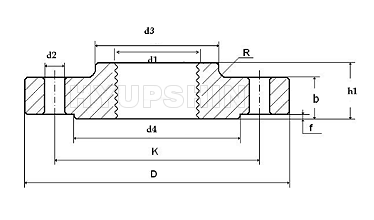

Flange Dimensions & Approximate Masses / Flange's Weight
EN 1092-1 TYPE 13 PN6 THREADED FLANGE
Rated Diameter Flange Neck Raised face Screws

Weight
(7,85 Kg/dm3)

d1 Thread k D b h1 d3 d4 f d2 Thread Bolt holes KG
15 21,3 R 1/2" 55 80 12 20 30,0 40,0 2,0 11 M10 4 0,373
20 26,9 R 3/4" 65 90 14 24 40,0 50,0 2,0 11 M10 4 0,584
25 33,7 R 1" 75 100 14 24 50,0 60,0 2,0 11 M10 4 0,729
32 42,4 R 1-1/4" 90 120 14 26 60,0 70,0 2,0 14 M12 4 1,040
40 48,3 R 1-1/2" 100 130 14 26 70,0 80,0 3,0 14 M12 4 1,200
50 60,3 R 2" 110 140 14 28 80,0 90,0 3,0 14 M12 4 1,340
65 76,1 R 2-1/2" 130 160 14 32 100,0 110,0 3,0 14 M12 4 1,830
80 88,9 R 3" 150 190 16 34 110,0 128,0 3,0 18 M16 4 2,750
100 114,3 R 4" 170 210 16 40 130,0 148,0 3,0 18 M16 4 3,010
125 139,7 R 5" 200 240 18 44 160,0 178,0 3,0 18 M16 8 4,300
150 168,3 R 6" 225 265 18 44 185,0 202,0 3,0 18 M16 8 4,630
1. SURFACE FINISH FACING TYPES A, B1, B2 etc
2. FLANGE MARKING: LOGO EN 1092-1 / 13 / DN100 / PN6 / P245GH / HEAT NUMBER

EN 1092-1 TYPE 13 PN16 THREADED FLANGE
Rated Diameter Flange Neck Raised face Screws

Weight
(7,85 Kg/dm3)

d1 Thread k D b h1 d3 d4 f d2 Thread Bolt holes KG
15 21,3 R 1/2" 65 95 16 22 35,0 45,0 2,0 14 M12 4 0,722
20 26,9 R 3/4" 75 105 18 26 45,0 58,0 2,0 14 M12 4 1,040
25 33,7 R 1" 85 115 18 28 52,0 68,0 2,0 14 M12 4 1,250
32 42,4 R 1-1/4" 100 140 18 30 60,0 78,0 2,0 18 M16 4 1,810
40 48,3 R 1-1/2" 110 150 18 32 70,0 88,0 3,0 18 M16 4 2,060
50 60,3 R 2" 125 165 18 28 84,0 102,0 3,0 18 M16 4 2,390
65 76,1 R 2-1/2" 145 185 18 32 104,0 122,0 3,0 18 M16 4 2,970
80 88,9 R 3" 160 200 20 34 118,0 138,0 3,0 18 M16 8 3,780
100 114,3 R 4" 180 220 20 40 140,0 158,0 3,0 18 M16 8 4,380
125 139,7 R 5" 210 250 22 44 168,0 188,0 3,0 18 M16 8 6,070
150 168,3 R 6" 240 285 22 44 195,0 212,0 3,0 22 M20 8 7,240
1. SURFACE FINISH FACING TYPES A, B1, B2 etc
2. FLANGE MARKING: LOGO EN 1092-1 / 13 / DN100 / PN16 / P245GH / HEAT NUMBER
Certificates
ISO9001-2015 TUV Rheinland for flanges manufacturing and sales
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
CE PED 2014/68/EU, AD2000 W0 W9
ISO9001:2015
UKCA PER 2016

Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: P235GH, P245GH, P250GH, RST37.2, C22.8, S235JR, ST37, ASTM A105
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.



EN1092-1 TYPE 13 FLANGES
