HOME > PRODUCTS CENTER > KOREA DIN 6 BAR FLANGE
DIN 2573 6 BAR SLIP ON PLATE FLANGE PN6
Print The Page
DIN 2527 6 BAR BLIND FLANGE PN6
DIN 2631 6 BAR WELD NECK FLANGE PN6
FLAT FACE (FF), RAISED FACE (RF)

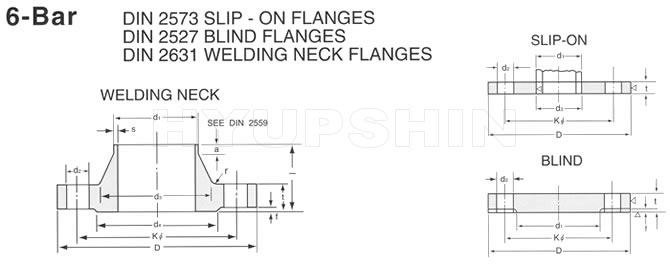

DIN 6BAR FLANGE DRAWINGS, SHANDONG HYUPSHIN FLANGES CO., LTD

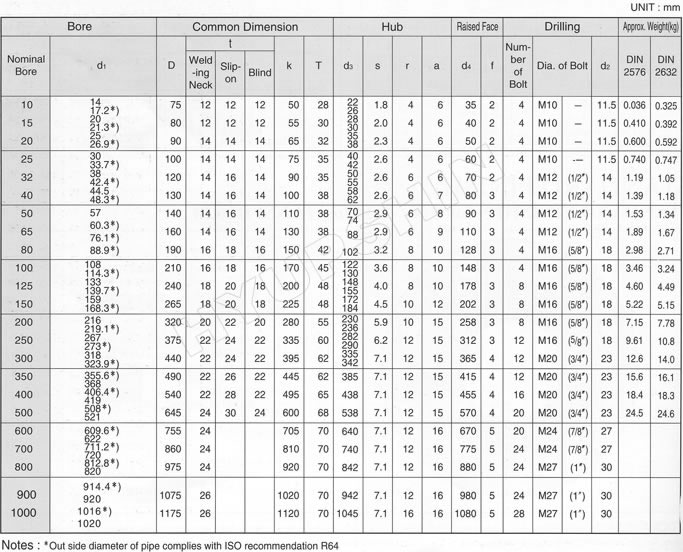

Flange Dimensions & Approximate Masses / Flange's Weight
DIN 6BAR FLANGE SPECIFICATIONS, SHANDONG HYUPSHIN FLANGES CO., LTD
Certificates
Korea KS Certificate for KS B1503 5K 10K 16K 20K Flanges
CE PED 2014/68/EU, AD2000 W0 W0, for quality assurance for flanges manufacturer of materials
KOREA KS CERTIFICATE
ISO 9001 : 2015
CE PED 2014/68/EU, AD2000 W0 W9

Production Capacity & Purchase Details
1. Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.
2. Material Carbon Steel: ASTM A105, SS400, SF440A, S235JR, C22.8, RST37.2, ST37, Q235
3. Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.
4. Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.
5. Monthly Output: 3000 tons per Month.
6. Delivery Terms: CIF, CFR, FOB, EXW.
7. Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.
8. Minimum Order Quantity: 1Ton or 100Pcs.
9. Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.
10. Find More Requirements In Flanges Market.


DIN 6 BAR FLANGE
