HOME > PRODUCTS CENTER > EN 1092-1 TYPE 12 WELDING NECK FLANGE
EN 1092-1 TYPE 12 SLIP ON BOSSED FLANGE
Print The Page
PN16, PN25, PN40
Jinan Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, EN1092-1 Type 11 flanges
Jinan Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter, EN1092-1 Type 11 flanges

Flange Dimensions & Approximate Masses

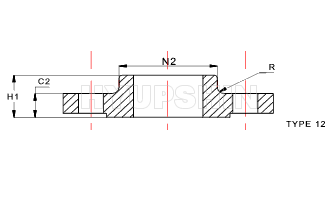

EN 1092-1 TYPE 12 PN16 SLIP ON BOSSED FLANGE
DN D C2 H1 R N2 B1 d1 f1 K L No Size
15 95 14 20 4 35 22 45 2 60 14 4 M12
20 105 14 24 4 45 27,5 58 2 65 14 4 M12
25 115 16 24 4 52 34,5 68 2 75 14 4 M12
32 140 16 26 6 60 43,5 78 2 85 14 4 M12
40 150 16 26 6 70 49,5 88 2 100 18 4 M16
50 165 18 28 6 84 61,5 102 2 110 18 4 M16
65 185 18 32 6 104 77,5 122 2 125 18 4 M16
80 200 20 34 8 118 90,5 138 2 145 18 8** M16
100 220 20 40 8 140 116 158 2 160 18 8 M16
125 250 22 44 8 168 141,5 188 2 180 18 8 M16
150 285 22 44 10 195 170,5 212 2 210 18 8 M16
200 340 24 44 10 246 221,5 268 2 240 22 8 M20
250 405 26 46 12 298 276,5 320 2 295 22 12 M20
300 460 28 46 12 350 327,5 378 2 355 26 12 M24
350 520 30 57 12 400 359 438 2 410 26 12 M24
400 580 32 63 12 456 411,0 490 2 470 26 16 M24
450 640 40 68 12 502 462,0 550 2 525 30 16 M27
500 715 44 73 12 559 513,5 610 2 585 30 20 M27
600 840 54 83 12 658 616,5 725 2 650 33 20 M30
700 910 36 83 12 760 - 795 2 770 36 20 M33
800 1025 38 90 12 864 - 900 2 840 36 24 M33
900 1125 40 94 12 968 - 1000 2 950 39 24 M36
1000 1255 42 100 16 1072 - 1115 2 1050 39 28 M36
1200 1485 48 - 16 - - 1330 2 1170 42 28 M39
1400 1685 52 - 16 - - 1530 2 1390 48 32 M45
1600 1930 58 - 16 - - 1750 2 1590 48 36 M45

EN 1092-1 TYPE 12 PN25 SLIP ON BOSSED FLANGE
DN D C2 H1 R N2 B1 d1 f1 K L No Size
10 90 14 20 4 30 18 40 2 mm mm - mm
15 95 14 20 4 35 22 45 2 60 14 4 M12
20 105 14 24 4 45 27,5 58 2 65 14 4 M12
25 115 16 24 4 52 34,5 68 2 75 14 4 M12
32 140 16 26 6 60 43,5 78 2 85 14 4 M12
40 150 16 26 6 70 49,5 88 2 100 18 4 M16
50 165 20 34 6 84 61,5 102 2 110 18 4 M16
65 185 22 38 6 104 77,5 122 2 125 18 4 M16
80 200 24 40 8 118 90,5 138 2 145 18 8 M16
100 235 24 44 8 145 116 162 2 160 18 8 M16
125 270 26 48 10 170 141,5 188 2 190 22 8 M20
150 300 28 52 10 200 170,5 218 2 220 26 8 M24
200 360 30 52 10 256 221,5 278 2 250 26 8 M24
250 425 32 60 12 310 276,5 335 2 310 26 12 M24
300 485 34 67 12 364 327,5 395 2 370 30 12 M27
350 555 38 72 12 418 359,5 450 2 430 30 16 M27
400 620 40 78 12 472 411,0 505 2 490 33 16 M30
450 670 46 84 12 520 462,0 555 2 550 36 16 M33
500 730 48 90 12 580 513,5 615 2 600 36 20 M33
600 845 58 100 12 684 616,5 720 2 660 36 20 M33
700 960 46 - 12 - - 820 2 770 39 20 M36
800 1085 50 - 12 - - 930 2 875 42 24 M39
900 1185 54 - 12 - - 1030 2 990 48 24 M45
1000 1320 58 - 16 - - 1140 2 1090 48 28 M45
1200 1530 - - 18 - - 1350 2 1210 56 28 M52
1400 1755 - - 18 - - 1560 2 1420 56 32 M52
1600 1975 - - 20 - - 1780 2 1640 62 36 M56

EN 1092-1 TYPE 12 PN25 SLIP ON BOSSED FLANGE
DN D C2 H1 R N2 B1 d1 f1 K L No Size
10 90 14 20 4 30 18 40 2 mm mm - mm
15 95 14 20 4 35 22 45 2 60 14 4 M12
20 105 14 24 4 45 27,5 58 2 65 14 4 M12
25 115 16 24 4 52 34,5 68 2 75 14 4 M12
32 140 16 26 6 60 43,5 78 2 85 14 4 M12
40 150 16 26 6 70 49,5 88 2 100 18 4 M16
50 165 20 34 6 84 61,5 102 2 110 18 4 M16
65 185 22 38 6 104 77,5 122 2 125 18 4 M16
80 200 24 40 8 118 90,5 138 2 145 18 8 M16
100 235 24 44 8 145 116 162 2 160 18 8 M16
125 270 26 48 10 170 141,5 188 2 190 22 8 M20
150 300 28 52 10 200 170,5 218 2 220 26 8 M24
200 375 34 52 10 260 221,5 285 2 250 26 8 M24
250 450 38 60 12 312 276,5 345 2 320 30 12 M27
300 515 42 67 12 380 327,5 410 2 385 33 12 M30
350 580 46 72 12 424 359,5 465 2 450 33 16 M30
400 660 50 78 12 478 411,0 535 2 510 36 16 M33
450 685 57 84 12 522 462,0 560 2 585 39 16 M36
500 755 57 90 12 576 513,5 615 2 610 39 20 M36
600 890 72 100 12 686 616,5 735 2 670 42 20 M39
Note: in BS EN 1092-1:2002   f1= 2 for all sizes.
In the latest versions of the relevant DIN standard. f1 varies as follow
(DN =< 32 f1 = 1-2, DN 32->250(inc) f1= 1-3, DN 250->500(inc) f1= 1-4, Dn >500 f1= 1-5 ).
